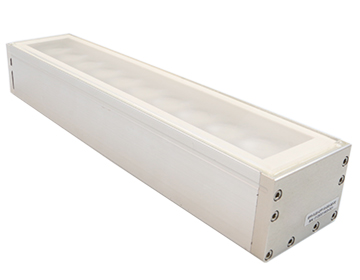

EFFI-Flex-CPT IP67 compact LED bar light.

effi-flex-CPT direct or grazing high power led bar light or backlight for machine vision and quality control

EFFI-Flex-CPT LED bar light is a compact version of EFFI-FLEX with IP67 standard

This powerful bar light is available in a wide range of wavelength and window option, easy to install thanks to its compact and robust design.

  • Complies with IP67 standard for protection against water and dust.
  • Integrated driver with Auto-Strobe function which able to increase the power by 300% in overdrive mode (when compared to continuous mode).
  • Robust design for applications in harsh environments
  • Water cooling is possible for higher power bar light

Datasheet
User manual
General CAD
product configurator

Unlike EFFI-FLEX, EFFI-FLEX-CPT cannot be opened by the user as it is IP67 protection standard. Customer can test on standard product EFFI-FLEX to define all configurations prior to purchase.

- Technical specifications -


- Length depending on number of LED -


WW: number of LED 1 3 5 10 15 ...
Standard version (every 2 cm) 55 mm 95 mm 135 mm 235 mm 335 mm ...
1 LED / 2 positions version (every 4 cm) - - 235 mm 435 mm 635 mm ...

Part number reference: EFFI-FLEX-CPT-WW...

1 - If 1 LED / 2 version, add -L2 (Length X 2) before the number of LED
2 - Max size available as standard: 3 meters mechanically either EFFI-FLEX-145 or EFFI-FLEX-L2-70
Other sizes available on request.

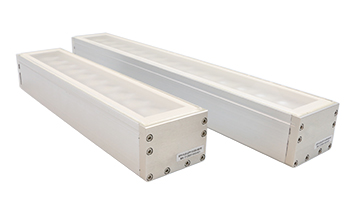

Different sizes of EFFI-Flex compact depending on the number of LEDs.

- Available wavelengths -


Color UV 365* UV Blue Green Red IR white
(T°= 5500K ± 500K)
XXX: wavelength (nm) 365 405 465 525 625 850 000

* In case of UV 365: no lens (not supported) and PMMA pane treated with UV protection

Part number: EFFI-FLEX-CPT-WW-XXX...

if RGB: -RGB
Other wavelengths are available upon request.
For example : 385mm, 660nm, 740nm, 940nm, etc.

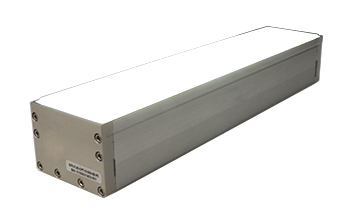

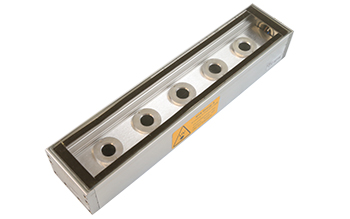

Example of EFFI-Flex compact with UV wavelength.

> Option: Multispectral version

EFFI-Flex compact bicolor:
EFFI-Flex-CPT with 10 LEDs & more: Built-in driver
EFFI-Flex-CPT with less than 10 LEDs: External driver
Part number: EFFI-FLEX-CPT-WW-XXX-XXX...
Example: EFFI-FLEX-CPT-WW-465-525...


Diagram showing the distribution of LEDs on a two-color EFFI-Flex compact - Used for machine vision and quality control.

EFFI-Flex-CPT Tricolor:
EFFI-Flex-CPT with 9 LEDs & more: Built-in driver
EFFI-Flex-CPT with less than 9 LEDs: External driver
-In case of RGB:
Part number: EFFI-FLEX-CPT-WW-RGB...

-In case of WUI (White-UV-IR):
Part number: EFFI-FLEX-CPT-WW-WUI...

Diagram showing the distribution of LEDs on a three-color EFFI-Flex-CPT - Used for machine vision and quality control.

Effilux offers a 3-way potentiometer to control each color independently.


EFFI-Flex compact quadricolor:
Effilux offers a four-color EFFI-Flex-CPT, please contact us for more information.
Part number: EFFI-FLEX-CPT-WW-RGBW...

Diagram showing the distribution of LEDs on a three-color or two-color EFFI-Flex compact - Used for machine vision and quality control.


Product Overview EFFI-Flex compact Tricolor or Bicolour - Used for machine vision and quality control.

> Option: Hyperspectral version

EFFI-FLEX-CPT Hyperspectral:
VIS-NIR broadband hyperspectral LED bar light created with a single & continuous spectrum LED.
Part number: EFFI-FLEX-CPT-HSI-WW-400900V1-...



For more information on Effilux multi and hyperspectral related products and possible spectra,
please refer to this page.

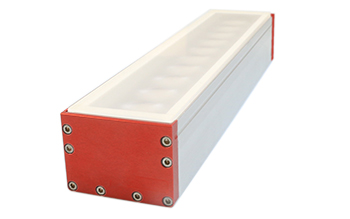

> Option: SWIR Version



EFFI-Flex-CPT is also available in SWIR range.
Available wavelengths: 980nm, 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, 1550nm, 1650nm.

For more information, please Contact Effilux

- Windows -


TR: Transparent
SD: Semi-diffusive
OP: Opaline
Presentation of the different types of Transparent / Semi-Diffuse / Opaline glass available on the

EFFILUX offers different window options to get the best compromise between power and uniformity according to the requirements and material of the inspection.
Caution: This product is sealed during manufacture. Unlike EFFI-FLEX, it cannot be opened by the user.


Part number: EFFI-FLEX-CPT-WW-XXX-YY...

Please specify your choice of window. The default window is semi-diffuse (SD)


- Emission angle according to the lens position -


EFFI-Flex-CPT is available in 4 lens configurations for customer to choose the right emission angle.
Caution: This product is sealed during manufacture. Unlike EFFI-FLEX, it cannot be opened by the user.

Position P0 P1 P2 P3
Angle
Presentation of the 90 ° emission angle of a compact Effi-Flex without lens
90° (Without lens)
Presentation of the 45 ° emission angle of a compact Effi-Flex equipped with a lens placed in position 1
45°
Presentation of the emission angle at 25 ° from a compact Effi-Flex equipped with a lens placed in position 2
25°
Presentation of the 10 ° emission angle of a compact Effi-Flex equipped with a lens placed in position 3
10°


Part number: EFFI-FLEX-CPT-WW-XXX-YY-ZZ

Please specify your choice of emission angle. The default emission angle is P2 position

- Additional options -

> Option: Polarizer

The optical accessory Polarizer eliminates glare caused by the light on the surface of object to be inspected. The camera can then then capture the optimal image of the object for inspection without the glow effects.


Part number: EFFI-FLEX-CPT-WW-XXX-YY-ZZ-POL
POL: polarizer accessory

To include polarizer, please add -POL in the part number
The standard polarizer is not suitable for blue or white light in continuous mode. For this kind of application, the high durability polarizer is necessary and it is available up to 45 LEDs.
To include high durability polarizer, please add -POL-HDY in the part number.

Vision of a camera lit by a standard Effi-FD for industrial vision and quality control Vision of a camera lit by an Effi-FD equipped with a Polarizer for industrial vision and quality control

> Option: Linescan

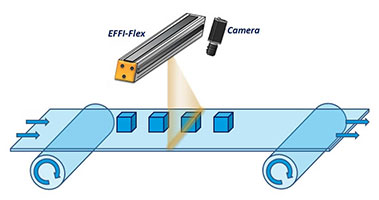

Diagram explaining the operation of an EFFI-Flex compact equipped with a Linescan for machine vision and quality control.

With the optical accessory Flex-Linescan, the led bar EFFI-Flex-CPT can be easily transformed into a line light or a darkfield light: EFFI-Flex-CPT-Linescan.

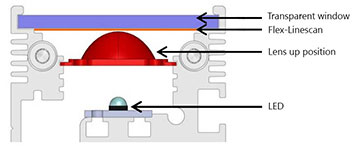

Diagram showing the components of a Linescan EFFI-Flex compact for machine vision and quality control.
Vision of a camera illuminated by a standard EFFI-Flex for machine vision and quality control. Vision of a camera illuminated by an EFFI-Flex equipped with a Linescan for machine vision and quality control.
Configuration
Linescan

Part number: EFFI-FLEX-CPT-WW-XXX-TR-P3-LS
LS: linescan accessory

To include this linescan accessory, please -LS in the part number.

> Cylindrical lens

Part number: EFFI-FLEX-CPT-WW-XXX-TR-P1-LS-CYL
CYL: external cylindrical lens accessory

To include this cylindrical accessory, please add -CYL in the part number.
Sample configuration: EFFI-FLEX-CPT-WW-XXX-TR-P1-LS-CYL.

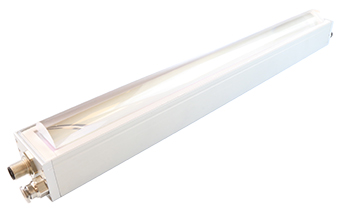

Presentation of a cylindrical EFFI-flex compact, realized by Effilux for the industrial vision and the quality control

> Option: Pure UV

Presentation of EFFI-flex compact PUV, made by Effilux for industrial vision and quality control via UV


EFFILUX's PureUV technology for 365nm EFFI-FLEX-CPT suppresses unwanted reflections and provides the best possible contrast for fluorescence applications. For more information on Effilux's UV and PureUV solutions, visit this page.



Part number: EFFI-FLEX-CPT-WW-XXX-TR-P0-PUV
To include Pure UV, please add -PUV in the part number.

- Drawings -

> CAD files

Version 1 LED 3 LED 5 LED 10 LED 15 LED 20 LED 25 LED 30 LED 35 LED 40 LED 50 LED ...
length (mm)
1 LED / 1 position
57
97
137
237
337
437
537
637
737
837
1037
...
length (mm)
1 LED / 2 positions
- - 237
437
637
837
1037
1237
1437 1637 2037 ...

For other lengths, please refer to the documentation section or or contact us.

- EFFI-FLEX mechanical versions -


Sealing "Openable" body Water cooling
(For high power)
Smooth walls
(Anti-dust)
Food Version
Standard Version
EFFI-FLEX
Compact Version
EFFI-FLEX-CPT
Stainless-steel Version
EFFI-FLEX-IP69K

See the different EFFI-Flex (EFFI-Flex / EFFI-Flex-CPT / EFFI-Flex-IP69K)

The EFFI-FLEX-CPT is fitted with a T-NUT M4 groove on the back. Effilux offers compatible fixing accessories.

> Option: Watercooling

For the Watercooling Option, add "-WTR" after EFFI-FLEX-CPT and before wavelength.

Part number reference: EFFI-FLEX-CPT-WTR-WW-XXX-YY

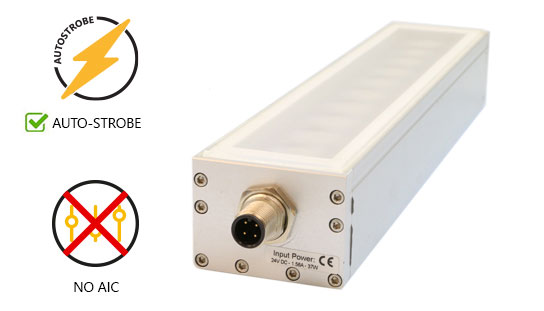

- Auto-Strobe Version (Standard) -

> Connectivity

The EFFI-Flex is powered directly into 24V DC via an M12 - 4 pins. Please note that the trigger pin must be connected.

Connections 4 Pin EFFI-Flex for industrial vision and quality control.
Pin number Designation Cable color
1 +24V Brown
2 n.a. white
3 GND blue
4 TRIGGER PNP [rising edge trigger] for Auto-Strobe
Lighting on if V PNP > 3V DC
Max 24V DC
Black

> How the Auto-Strobe works

Graphical representation of the output intensity curve of the Effi-Flex Auto-Strobe driver overdrive
Effi-flex ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

> Option: NPN connection

Effilux can wire the pin 2 of the M12 connector for use in NPN [trigger on falling edge] for the Auto-Strobe upon request.
In this case, Lighting on if VNPN < 1.5V DC.

Part number: EFFI-FLEX-CPT-[...] - NPN

- Option: ELS Mode -


The standard product (Auto-Strobe) is not dimmable, EFFILUX offers an alternative electronic configuration suitable for continuous use and linear applications. This version allows you to adjust the light intensity of the product according to the input signal (DIM): ELS Mode.

> Connectic

The EFFI-Flex-CPT is powered directly into 24V DC via an M12 - 4 pins.

Connections Pin Effi-Flex compact for industrial vision and quality control
Pin number Designation Cable color
1 +24V Brown
2 n.a. white
3 GND blue
4 AIC: Analog control of intensity
Max 24V DC
Black

> AIC control


Graphical representation of the output intensity curve of the Effi-Flex Auto-Strobe driver overdrive
Effi-flex-CPT ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

Control of the output intensity according to the input AIC signal

Effi-flex compact ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

Part number: EFFI-FLEX-CPT-[...]*-ELS-VVV-UUU
VVV: output current (100%), default 350.

More powerful versions are also available, requiring special cooling, contact Effilux for more information.

UUU: DIM control range (5V, 10V or 24V)
Version ELS-IN: Inverse version (max of intensity to DIM = 0V)

- Response time -


Designation Time (built-in driver)
Rise time ( TM ) 8µs
Response rise time ( TRM ) 5µs
Fall time ( TD ) 5µs
Response fall time ( TRD ) 5µs



- Available upon request -

Custom electronics

Other connector positions


For all other inquiries contact EFFILUX.
